TANYO Shelf Pin Jig and Hinge Jig, 2-in-1

$23.99 – $31.99

✓ Shelf pin jig + 35 mm hinge jig in one

This shelf pin jig does two jobs in cabinet making: a row of shelf pin holes at even spacing and 35 mm hinge cups at the right inset. All-metal, with removable drill guides for 1/4 in and 5 mm bits, double-sided scales and a clamping fixture.

Version

Use a depth stop on the bit. Shelf-pin holes only need to be 3/8 in deep, and a stop keeps you from drilling through the side panel.

Built for the job

Shelf pin jig + 35 mm hinge jig in one

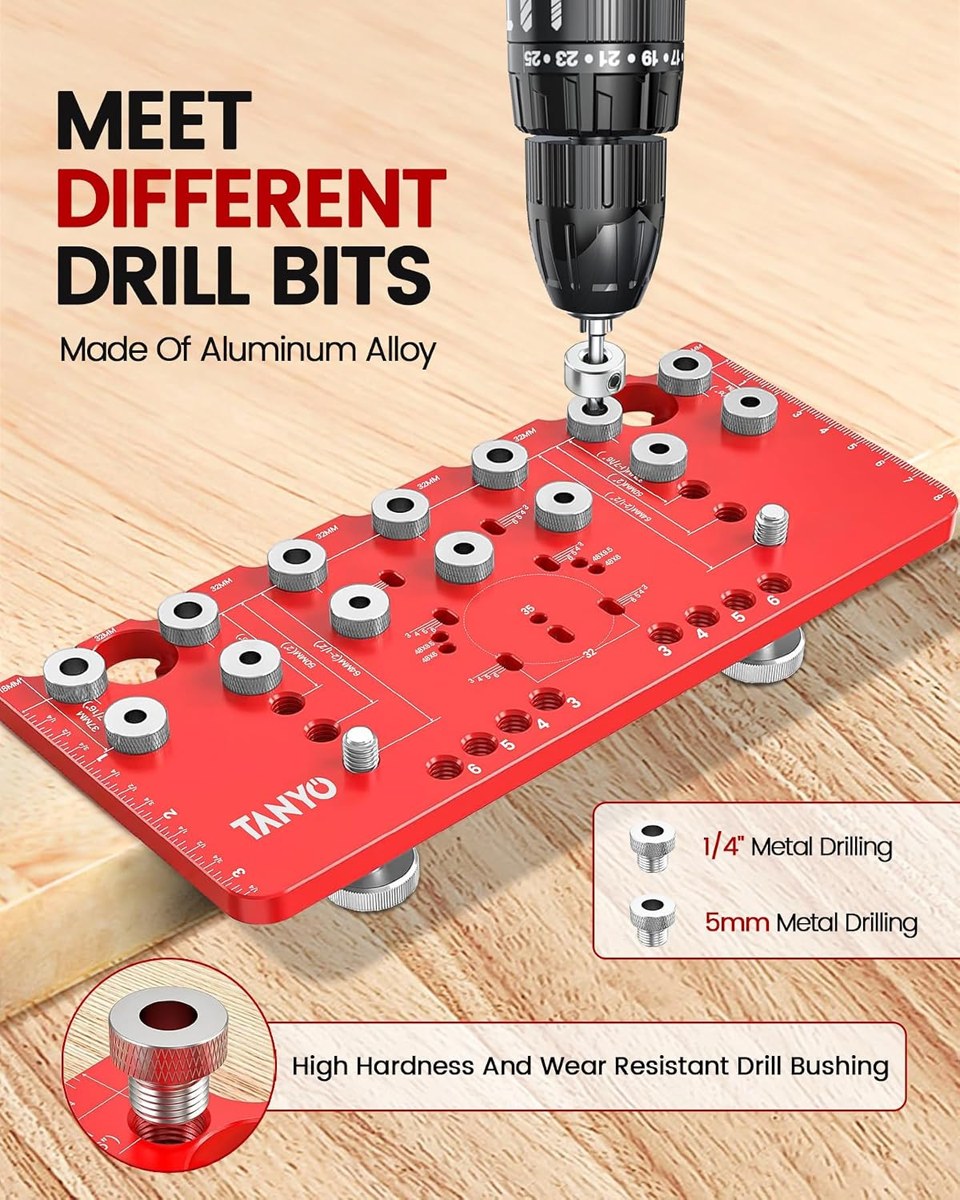

Drill sleeves for 1/4" and 5 mm bits

Double-sided measuring scales

Full aluminium construction

Specifications

Functions	Shelf pins, 35 mm hinges
Bits	1/4" and 5 mm
Holes	7 or 11
Material	Aluminium

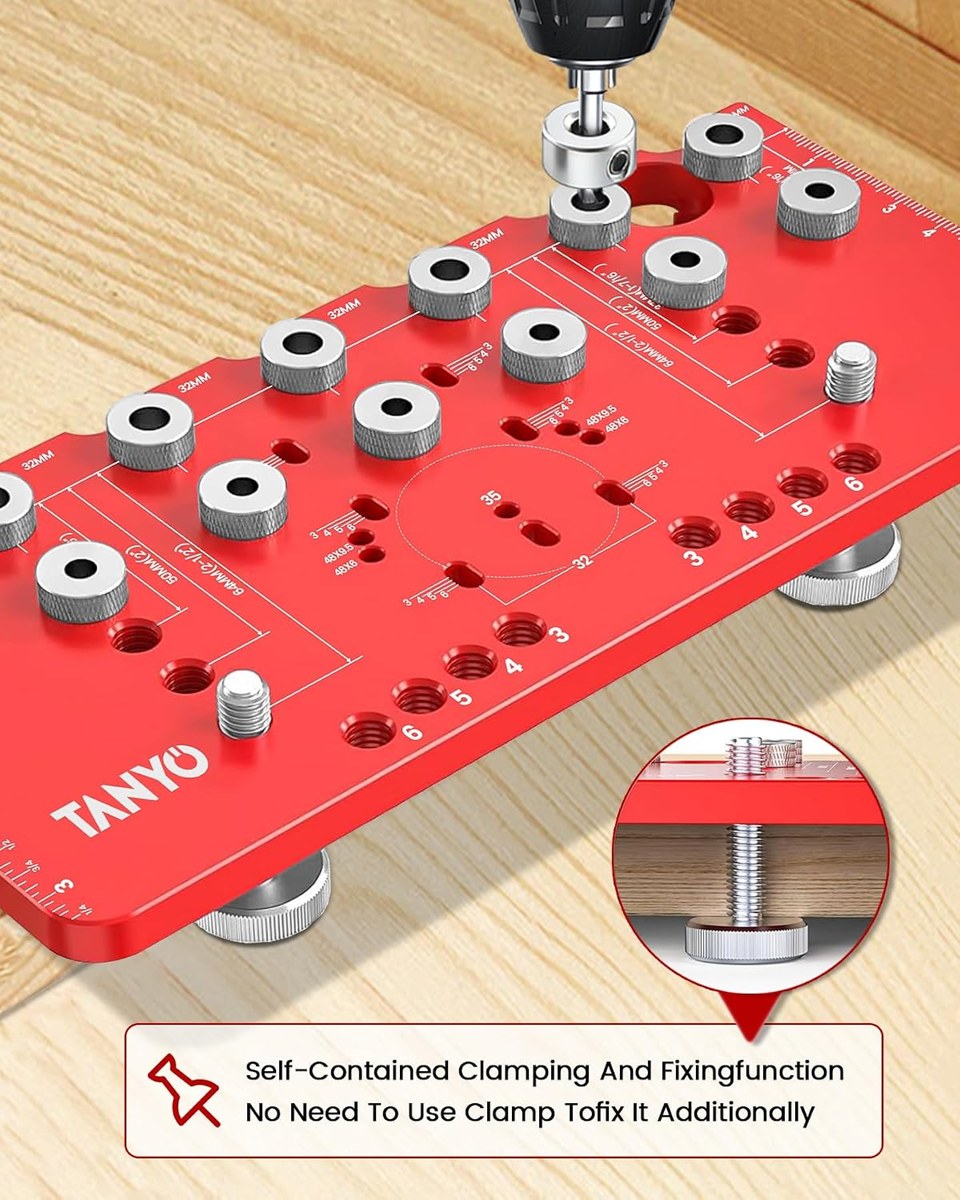

Fixing	Clamping

Where it helps

Adjustable shelves in cabinets

Concealed hinge installs

Bookcases and wardrobes

Garage storage

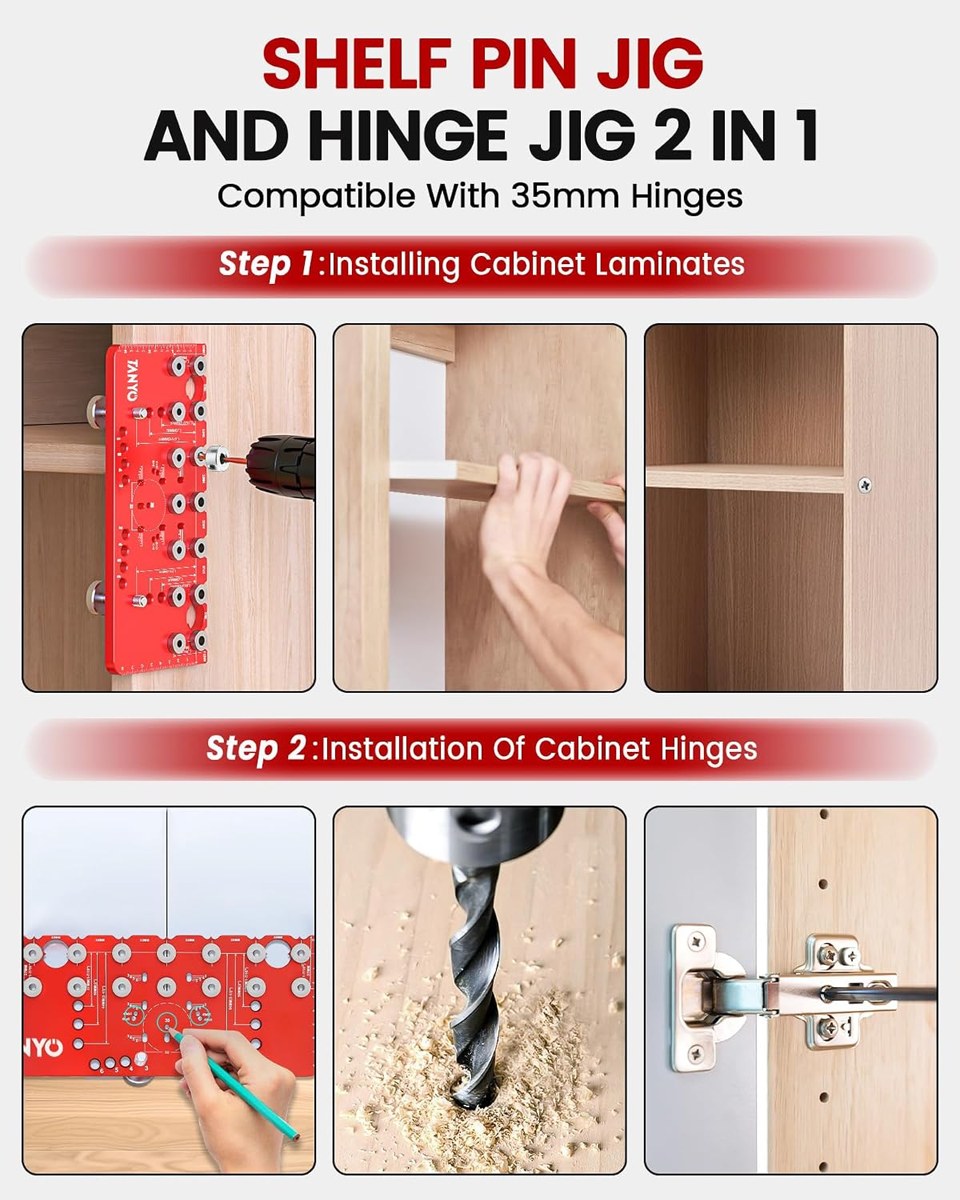

How to use the shelf pin jig

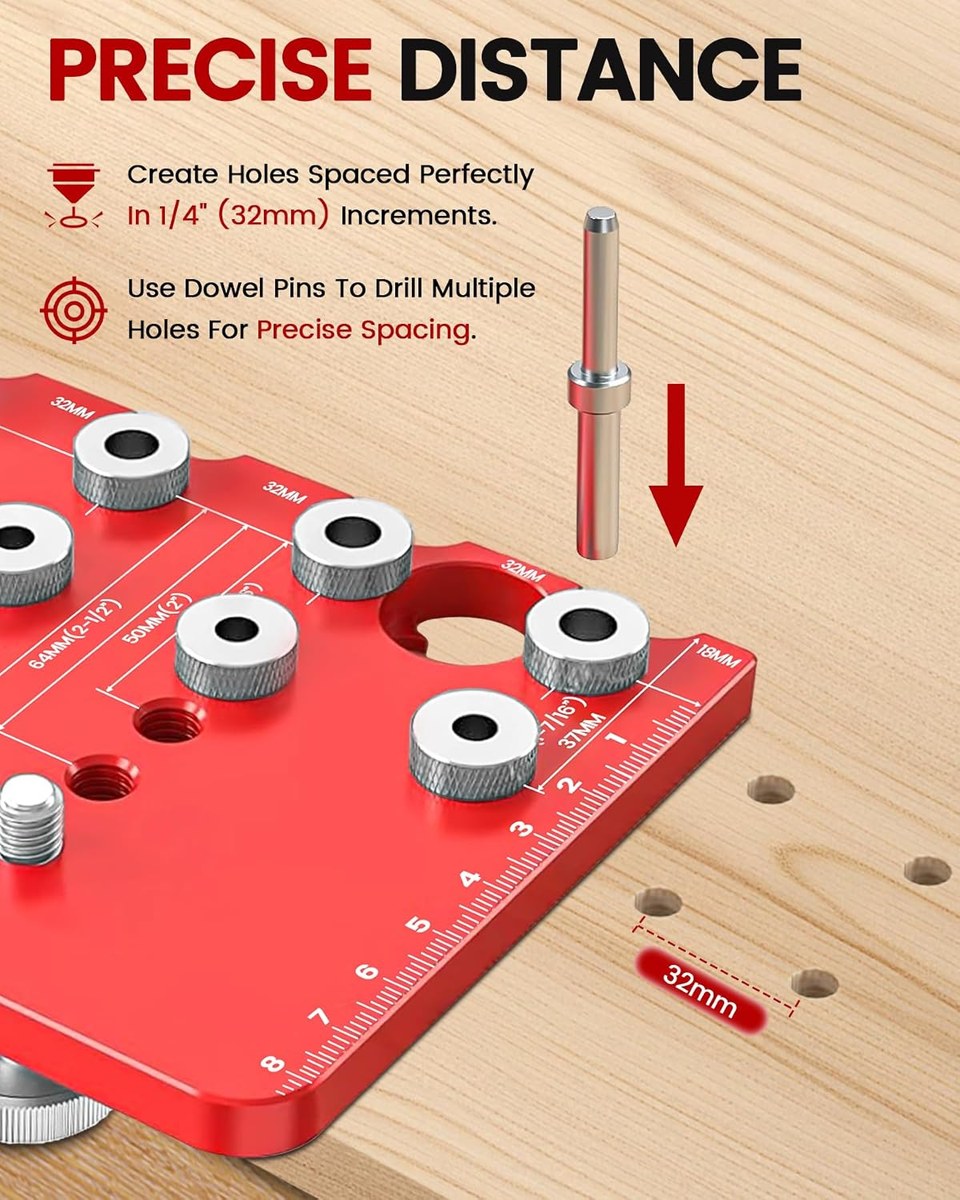

Mark the bottom of the jig and always place it against the same edge — the front edge of the cabinet side or the bottom shelf — so both sides of the cabinet get holes at exactly the same height. Clamp it, set a stop collar on the drill bit for the hole depth (3/8 in is typical for 5 mm or 1/4 in shelf pins), and drill through each drill guide. Move the jig along and use the pin in the last hole as a locator to keep the spacing continuous.

For the second side, flip the jig and register it from the same edge. Count the holes before you start; a shelf only sits level when the pins line up side to side.

Hinges and other uses

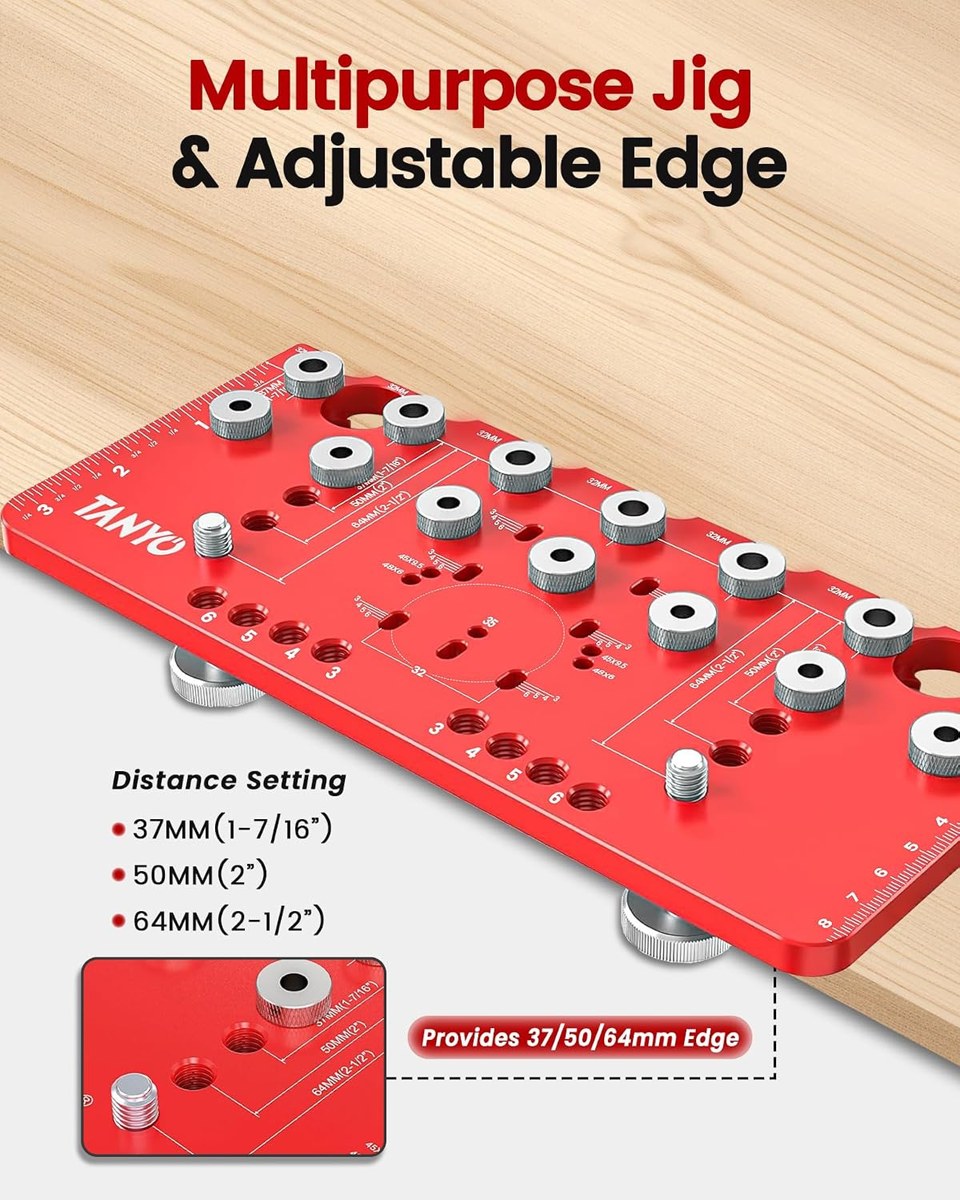

35 mm concealed hinge cups at the correct inset from the door edge.
Adjustable shelves in kitchen cabinets, bookcases and wardrobes.
Adding shelves to a finished cabinet without removing it.
Locating holes for drawer slides and other hardware.

Owner reviews

4.4 out of 5 · 102 reviews

July 17, 2026

Good, Reliable Jig for Shelf Pins and Hinges

The TANYO 2‑in‑1 Shelf Pin and Hinge Jig works well and does exactly what it’s supposed to do. The 1/4‑inch adjustable guide makes drilling consistent shelf pin holes pretty simple, and the hinge jig is a nice bonus for cabinet work. The material feels sturdy enough for regular shop use, and the layout is easy to follow even if you’re not a pro. It’s not fancy, but it’s accurate, convenient, and saves time on projects. For the price, getting both jigs in one tool is a solid deal. Five stars from me.

David C. · verified owner

April 13, 2026

Works great! Seems very well made, love how handy it is!

There's probably more capability with this tool than I'll ever know how to use, but I just needed to drill shelf pin holes, and it's been working great for me. I'm building all of my own kitchen cabinets, so I do need quality, and I'm not complaining about this tool!

72098734 · verified owner

September 26, 2026

Cabinet shelf hole jig.

I used the threaded end as spacer rather than the knurled knob end. It's important to count the holes!

James M. · verified owner

August 24, 2026

Works great, reasonable price

Flexible placement, just what I needed to add shelves to a finished cabinet

Dale · verified owner
