TANYO Shelf Pin Jig and Hinge Jig, 2-in-1

4.4 · 102 ratings

This shelf pin jig does two jobs in cabinet making: a row of shelf pin holes at even spacing and 35 mm hinge cups at the right inset. All-metal, with removable drill guides for 1/4 in and 5 mm bits, double-sided scales and a clamping fixture.

$23.99–$31.99Shelf price from the seller — check it at checkout.

Choose version

Shelf pin jig + 35 mm hinge jig in one

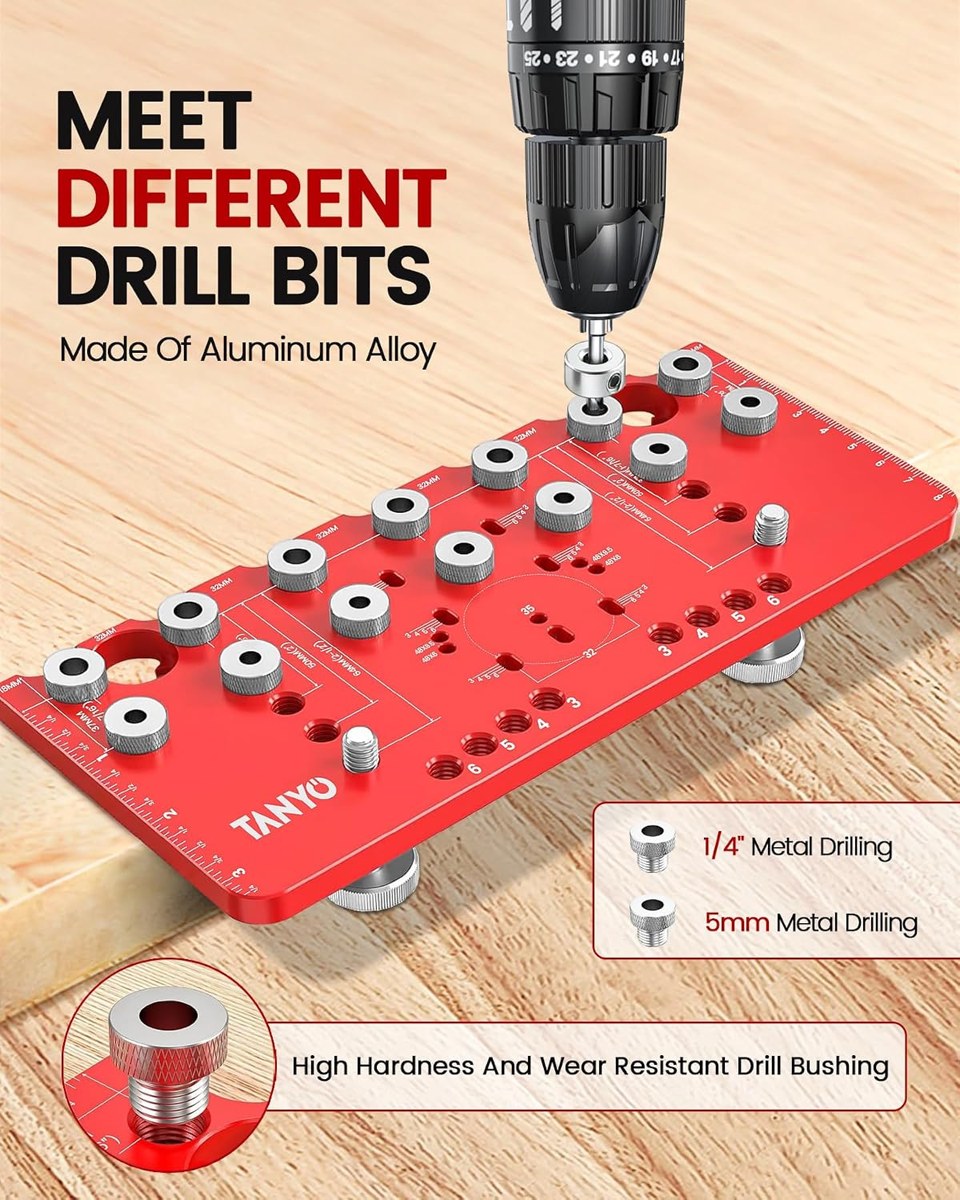

Drill sleeves for 1/4" and 5 mm bits
Double-sided measuring scales
Full aluminium construction

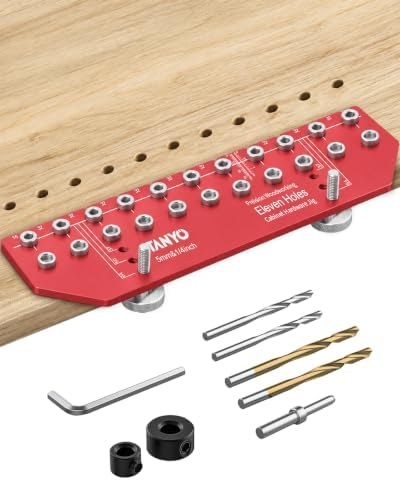

7-hole and 11-hole versions

On the hook: specs

Functions	Shelf pins, 35 mm hinges
Bits	1/4" and 5 mm
Holes	7 or 11
Material	Aluminium

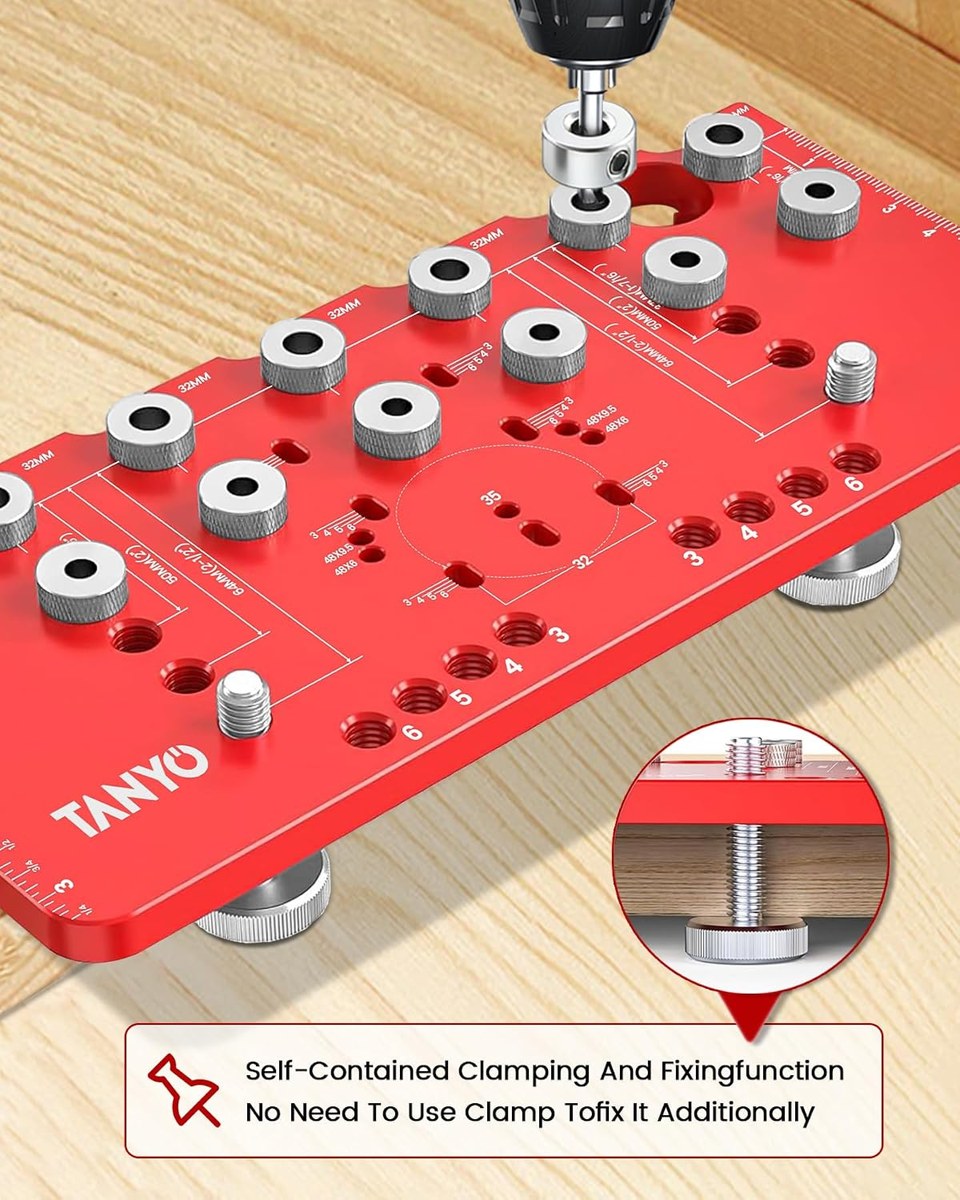

Fixing	Clamping

Jobs it does

Adjustable shelves in cabinets
Concealed hinge installs
Bookcases and wardrobes
Garage storage

How to use the shelf pin jig

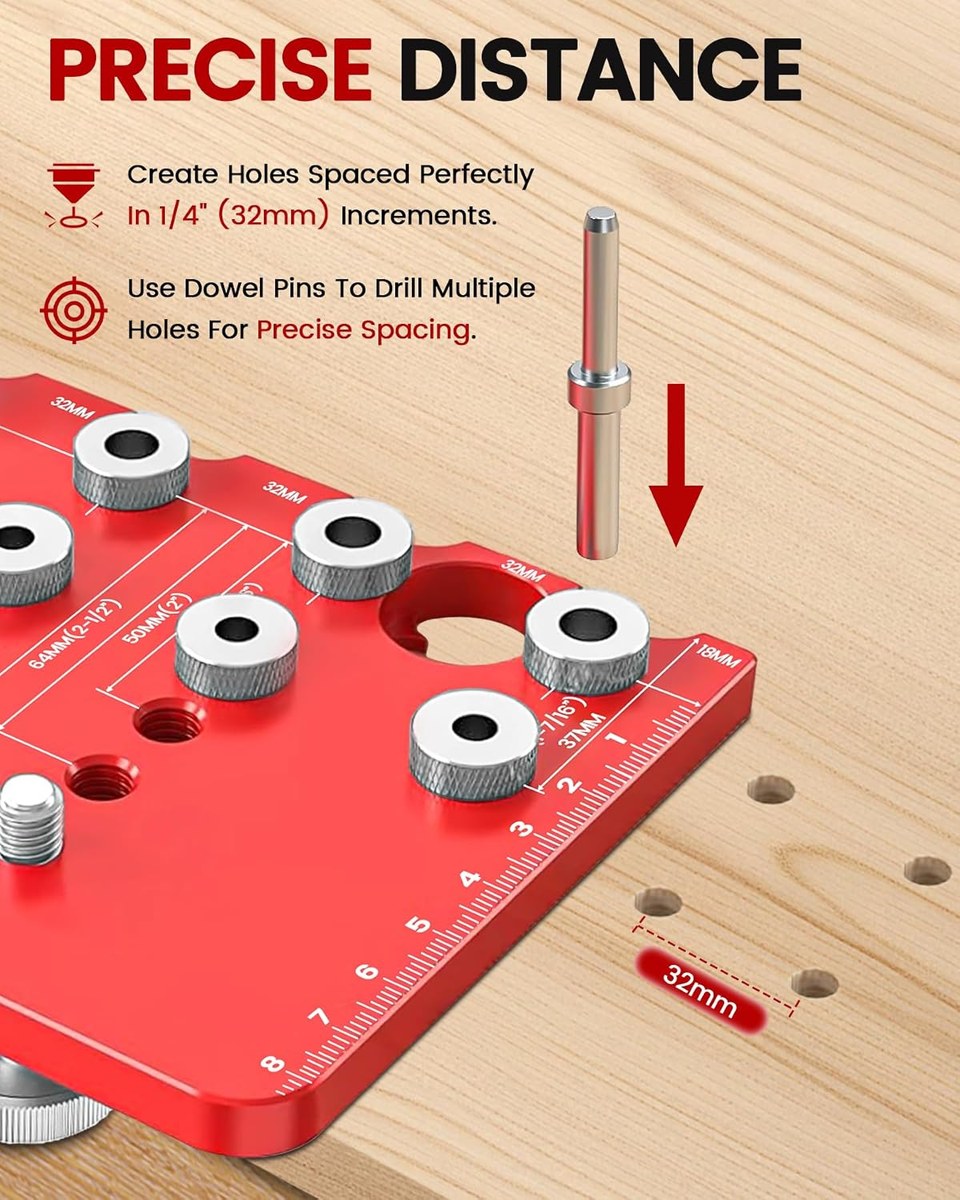

Mark the bottom of the jig and always place it against the same edge — the front edge of the cabinet side or the bottom shelf — so both sides of the cabinet get holes at exactly the same height. Clamp it, set a stop collar on the drill bit for the hole depth (3/8 in is typical for 5 mm or 1/4 in shelf pins), and drill through each drill guide. Move the jig along and use the pin in the last hole as a locator to keep the spacing continuous.

For the second side, flip the jig and register it from the same edge. Count the holes before you start; a shelf only sits level when the pins line up side to side.

Hinges and other uses

35 mm concealed hinge cups at the correct inset from the door edge.
Adjustable shelves in kitchen cabinets, bookcases and wardrobes.
Adding shelves to a finished cabinet without removing it.
Locating holes for drawer slides and other hardware.
