TANYO cabinet hardware jig, shelf pin jig and woodworking templates

How a cabinet hardware jig works

A cabinet hardware jig is a drilling template that clamps to the edge of a door or drawer front. A slider sets the hole spacing of the handle — 3 in, 96 mm, 128 mm and so on — and a stop sets the distance from the edge, so every handle in a kitchen lands in the same spot. TANYO's jig is thickened aluminium with laser-cut scales that won't rub off.

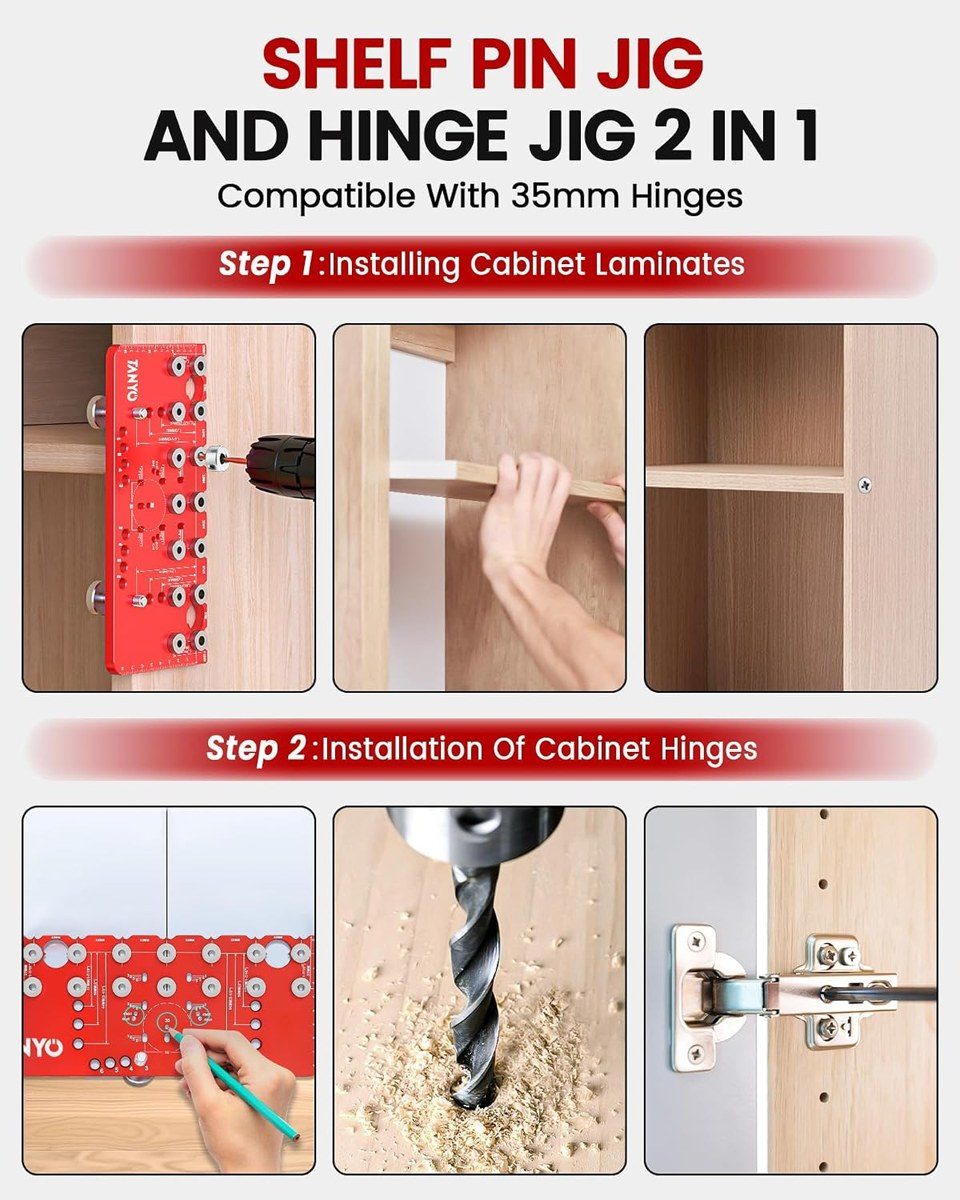

The shelf pin jig does the same for rows of shelf-pin holes: drill sleeves for 1/4 in and 5 mm bits keep the holes straight, and a second guide places 35 mm concealed hinge cups at the correct inset.

Templates for stairs, corners and thin rips

• Stair tread template: opens 8–60 in, copies both wall angles, locks the shape.

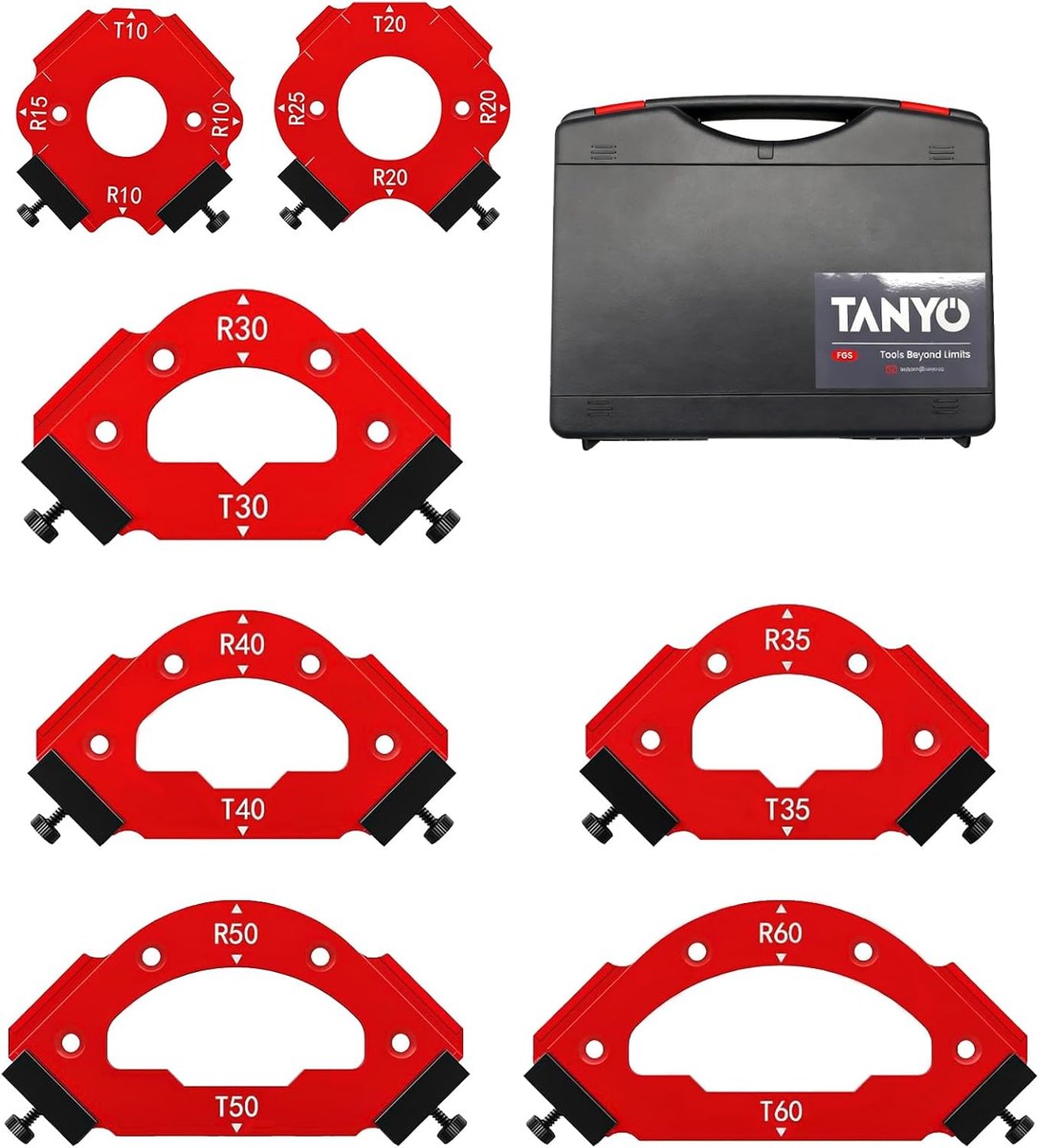

• Router corner radius templates: R10–R60 and chamfers, plus a large R100–300 set.
• Thin rip jig: rides in the miter slot so thin strips fall away from the blade.

Clamp every template before you cut, and test the first cut on scrap.

Install knobs and pulls with accurate placement

Most people buy a cabinet hardware jig for one kitchen and keep it for every project after. Without one, each pull means a tape measure, a pencil, a square and a guess about the screws; with one, the placement is set once and repeated on every cabinet door and drawer. The jig registers from the edge of the door, so the position of each handle is the same distance from the bottom corner, and the drill guide keeps the bit square to the wood so the screws line up with the hardware.

Precision matters most on long runs of cabinets, where a small error shows from across the room. The TANYO jig is designed for both single knobs and two-hole pulls, works on doors and drawer fronts of any size, and its metal drill guides keep holes accurate over years of use. It is versatile enough for small vanity installs and a full kitchen, and the aluminium body gives it durability that plastic jigs lack.

Choosing the right jig

• Handles, pulls and knobs: cabinet hardware jig.
• Adjustable shelf pin holes and 35 mm hinges: shelf pin and hinge jig.
• Stair treads, risers and shelves between walls: stair tread template.
• Rounded table and cabinet corners: router radius templates.
• Thin strips on the table saw: thin rip jig.
